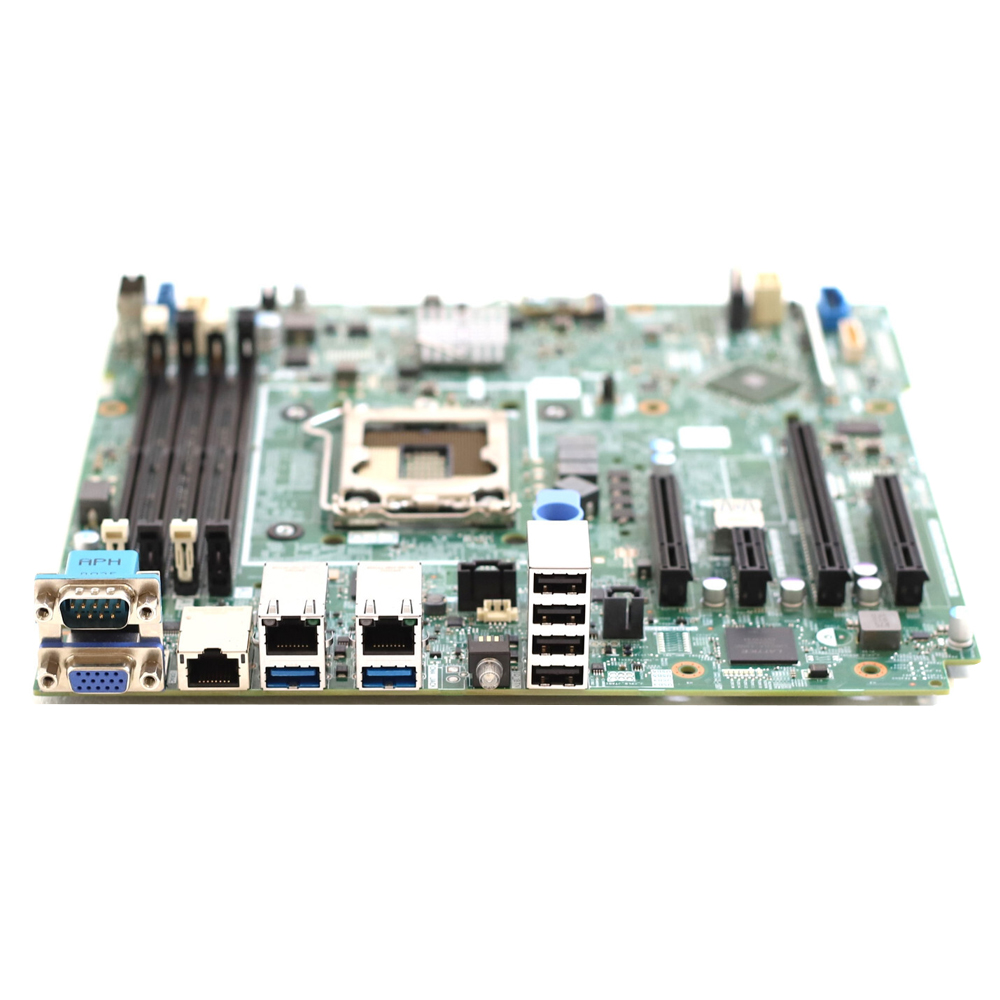

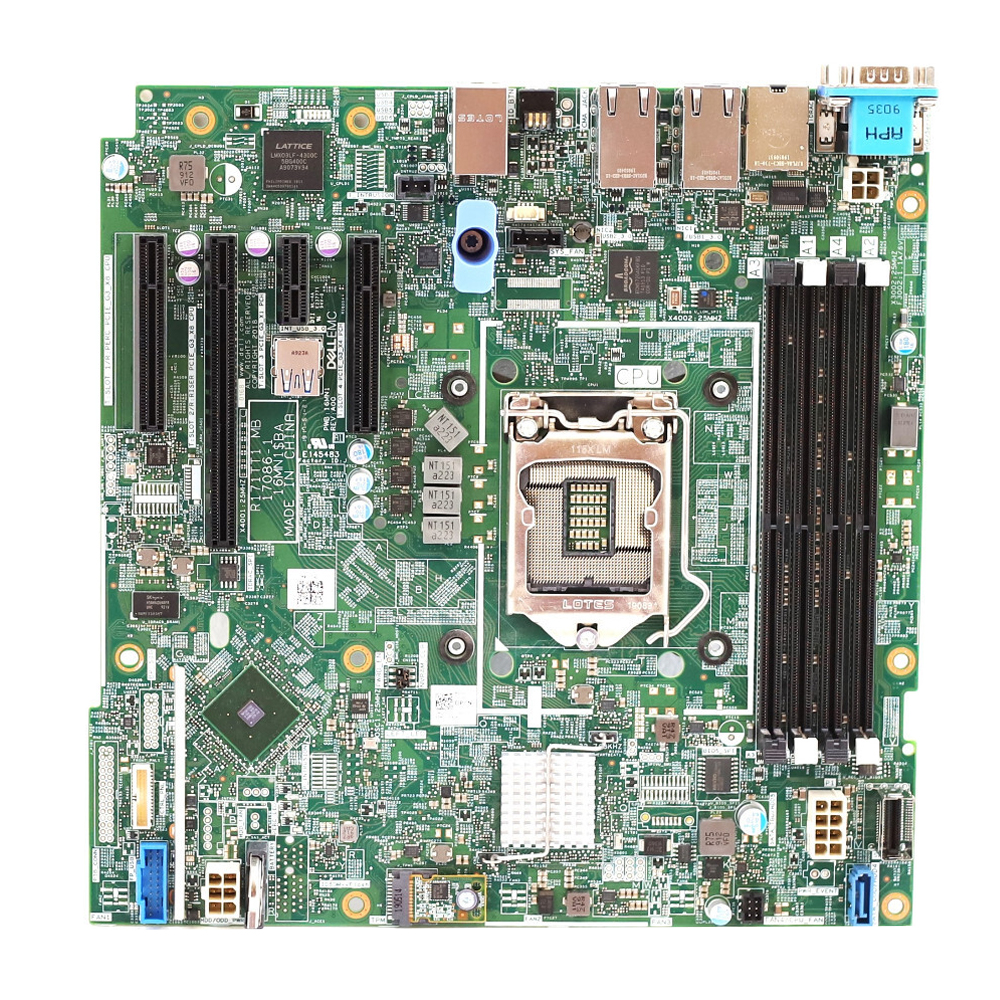

Dell PowerEdge T140 Motherboard

Dell PowerEdge T140 Motherboard (Part Number: 0C2GT0) – Specifications

The Dell 0C2GT0 motherboard is built for the Dell PowerEdge T140, a reliable and efficient entry-level tower server ideal for small businesses, file/print servers, and basic workloads.

Key Specifications:

• Form Factor:
  • Proprietary tower server motherboard
• Processor Support:
  • Supports Intel Xeon E-2100 and E-2200 series processors
  • Also compatible with select Intel Core i3 (8th/9th Gen), Pentium, and Celeron CPUs
  • Socket: LGA 1151 (Socket H4)
  • Up to 6 cores / 12 threads with Xeon E-2286G
• Chipset:
  • Intel C246 chipset
• Memory Support:
  • 4 x DDR4 DIMM slots
  • Supports ECC UDIMM
  • Maximum memory: 64GB DDR4 ECC UDIMM
  • Speeds up to 2666 MT/s (depends on CPU)
• Storage Interface:
  • 4 x SATA 6Gb/s ports onboard
  • Compatible with Dell PERC H330 RAID controller for hardware RAID
  • Chassis supports up to 4 x 3.5” cabled or hot-plug drives (SATA or SAS)
• Expansion Slots:
  • 1 x PCIe Gen3 x16
  • 1 x PCIe Gen3 x8 (x4 lanes)
  • 2 x PCIe Gen3 x1
• Networking:
  • Dual Intel i210 Gigabit Ethernet ports onboard
• Internal I/O:
  • Front panel header, fan headers, USB 2.0/3.0 internal headers
  • TPM 2.0 module support
• Management:
  • iDRAC9 Basic (no dedicated port)
  • Upgradeable to iDRAC9 Express or Enterprise (license required)
  • Compatible with Dell OpenManage management suite
• Power Interface:
  • Supports single non-redundant PSU (290W or 365W depending on system config)
